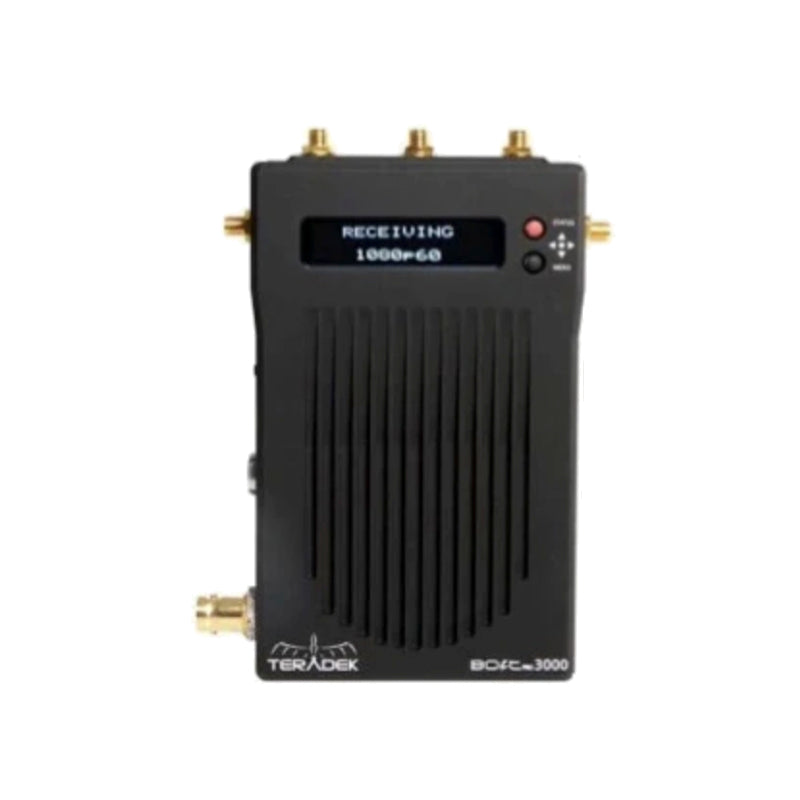

Teradek Bolt 3000 Wireless Monitor (1) Receiver Kit

$250.00  / Day
Quantity
- +

  • (1) Teradek Bolt Pro 3000 TX
  • (1) Teradek Bolt Pro 3000 RX
  • (2) Large Teradek Antenna
  • (5) Small Teradek Antenna
  • (2) 2' - Thin SDI Cable
  • (2) 3' - Thin HDMI Cable
  • (3) 1.5' - D-Tap To 2-Pin Lemo Cable
  • (1) 1/4" 20 Thumbscrew
  • (1) 1/4" 20 Cold Shoe Adapter
  • (1) Baby to 1/4" 20 Male Threaded Adapter (Stand Adapter)
  • (1) Teradek AC Power Supply
  • (1) Hard Case
  • $250.00 Day/Weekend Rate
    $750.00 Week Rate
    $2,250.00 Month Rate

    Transmitter:

    • Video Input:

    1 x SDI, BNC

    1 x HDMI

    • Video Output:

    1 x SDI, BNC

    1 x HDMI

    • Channels:

    20 MHz DFS Channels: 24 (200 MHz channels cannot utilize interlaced, PsF, or 1080p 60/50)
    40 MHz DFS Channels: 11 (USA)

    • Color Sampling:

    RGB 4:4:4 (HDMI out, 8-bit color)
    YCbCr: 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v1.1.0 or later)

    • Formats:

    1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080PsF 30/29.97/25/24/23.98
    1920 x 1080i 60/59.94/50
    1280 x 720p 60/59.94/50
    576i/480i
    NTSC/PAL

    • Wireless:

    Range: Up to 3000' / 914 m, line-of-sight
    Non-DFS Frequencies: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz (US) / 5.19 to 5.23 GHz (EU & JP)
    DFS Frequencies: 5.27 to 5.55 GHz and 5.67 GHz (US) / 5.27 to 5.67 GHz (EU & JP)

    • RF Power:

    22 dBm EIRP (with two 5 dBi TX antennas)

    • Noise Rejection:

    Can coexist with Wi-Fi and 5 GHz cordless phones

    • Audio:

    48 kHz, 24-bit PCM

    • Mounting:

    1/4"-20 threaded mounting holes

    • Power:

    Volts: 7 to 28 VDC
    Consumption: 7.5 W
    Connector: 2-pin LEMO

    • Dimensions:

    0.9”x2.6”x4.0"

    • Weight:

    8oz



    Receiver:

    • Video Output:

    1 x SDI, BNC (75 Ohms)
    1 x Micro-USB 3.0

    • Color Sampling:

    RGB 4:4:4 (HDMI out, 8-bit color)
    YCbCr: 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v1.1.0 or later)

    • Formats:

    1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
    1920 x 1080PsF 30/29.97/25/24/23.98
    1920 x 1080i 60/59.94/50
    1280 x 720p 60/59.94/50
    576i/480i
    NTSC/PAL

    • Wireless:

    Range: Up to 3000' / 914 m, line-of-sight
    Non-DFS Frequencies: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz (US) / 5.19 to 5.23 GHz (EU & JP)
    DFS Frequencies: 5.27 to 5.55 GHz and 5.67 GHz (US) / 5.27 to 5.67 GHz (EU & JP)

    • RF Power:

    17 dBm EIRP (with one 2 dBi TX antenna)

    • Noise Rejection:

    Can coexist with Wi-Fi and 5 GHz cordless phones

    • Audio:

    48 kHz 24-bit PCM

    • Power:

    Volts: 7 to 28 VDC
    Consumption: 8.5 W
    Connector: 2-pin LEMO

    • Dimensions:

    5.5”x3.” x0.9"

    • Weight:

    13.3oz
