"The RED V-Raptor is the latest in RED's line of cinema cameras and the first iteration of their DSMC-3 Body Type. It boasts a VistaVision-sized sensor, allowing you to make full use of any full-frame or larger lenses - it is RF mount native but we also feature EF and PL adapters for flexibility. When shooting at 8K 120FPS this camera writes up to 800 megabytes per second (requiring RED-approved media).

Now introducing a new cage from TILTA, which offers multiple 14.8V accessory power outputs, new top plate and side plates for dramatically more mounting options, and an adapter for full-sized gold mount batteries."

-Eric Silver, Lead Technician

[#tab_1]

(1) Red V-Raptor 8K VV DSMC3 Body
(1) Tilta Red V-Raptor Full Camera Cage With Gold Mount Plate
(1) Red DSMC3 7” Touch LCD Monitor
(1) Red DSMC3 LCD Hinge Base With (2) Captive 1/4"-20 Screws
(1) Red DSMC3 LCD Hinge Arm With (2) Thumb Screws
(1) 10" - Red USB-C DSMC3 RMI Cable
(1) 39" - Red USB-C DSMC3 RMI Cable
(2) 12" - 15mm Rod
(2) V-Raptor Wing Grips
(1) Red AC Power Supply
(1) IEC Cable
(2) Red 660GB CFexpress 2.0 Type-B Media Card
(1) ProGrade Digital CFexpress & SDXC Card Reader
(1) Short - USB Type-C To USB Type-C Cable
(1) Short - USB Type-A To USB Type-C Cable
(1) RF, PL or EF Mount
(1) Hard Case

[/tab_1]
[#tab_2]

$750.00 Day/Weekend Rate
$2,250.00 Week Rate
$6,750.00 Month Rate

[/tab_2]

[#tab_3]

Effective Pixels:

8192 (h) x 4320 (v)

Sensor Size:

40.96 x 21.6 mm 35.4MP (Full-Frame) CMOS

Dynamic Range:

17 Stops

Lens Mount Type:

RF mount

PL & EF Mount Adapters available

Raw Recording

8192 x 4320
7168 x 3780
6144 x 3240
5120 x 2700
4096 x 2160
3072 x 1620
2048 x 1080

Recording Modes

REDCODE HQ:
8192 x 4320p up to 60 fps
6144 x 3240p up to 96 fps
4096 x 2160p up to 240 fps
2048 x 1080p up to 480 fps

REDCODE MQ:
8192 x 4320p up to 60 fps
6144 x 3240p up to 160 fps
4096 x 2160p up to 240 fps
2048 x 1080p up to 480 fps

REDCODE LQ:
8192 x 4320p up to 120 fps
6144 x 3240p up to 160 fps
4096 x 2160p up to 240 fps
2048 x 1080p up to 480 fps

Variable Frame Rates

8K: Up to 120 fps
8K (Windowed): Up to 150 fps
7K: Up to 140 fps
7K (Windowed): Up to 175 fps
6K: Up to 160 fps
6K (Windowed): Up to 200 fps
5K: Up to 192 fps
5K (Windowed): Up to 240 fps
DCI 4K: Up to 240 fps
DCI 4K (Windowed): Up to 300 fps
3K: Up to 320 fps
3K (Windowed): Up to 400 fps
DCI 2K: Up to 480 fps
DCI 2K (Windowed): Up to 600 fps

Monitoring:

Integrated 2.4" LCD monitor for camera control only (no video preview)

Media/Memory Card Slot

Single Slot: CFexpress Type B (CFast 2.0)

Battery Type:

Micro V-Mount

Power Connectors:

6-Pin LEMO (11 to 17 VDC) Input

Construction:

Aluminum Alloy

Operating Temperature:

32 to 104°F

Storage Temperature:

-4 to 122°F

Storage Relative Humidity:

0% to 85% non-condensing

Audio:

2-Channel 24-Bit 48 kHz

Dimensions:

6.1" x 4.3" x 4.3"

Weight:

4 lb

[/tab_3]

[#tab_4]

[/tab_4]

[#tab_5]

Mamiya PL Sekor C (7) Cine Prime Lens Set

Canon Drop-In Filter Mount Adapter EF-EOS R With Variable ND Filter

Anton Bauer Titon 150 Gold Mount (4) Battery Kit

[/tab_5]

Red Cameras

Red V-Raptor 8K VV DSMC3 Kit

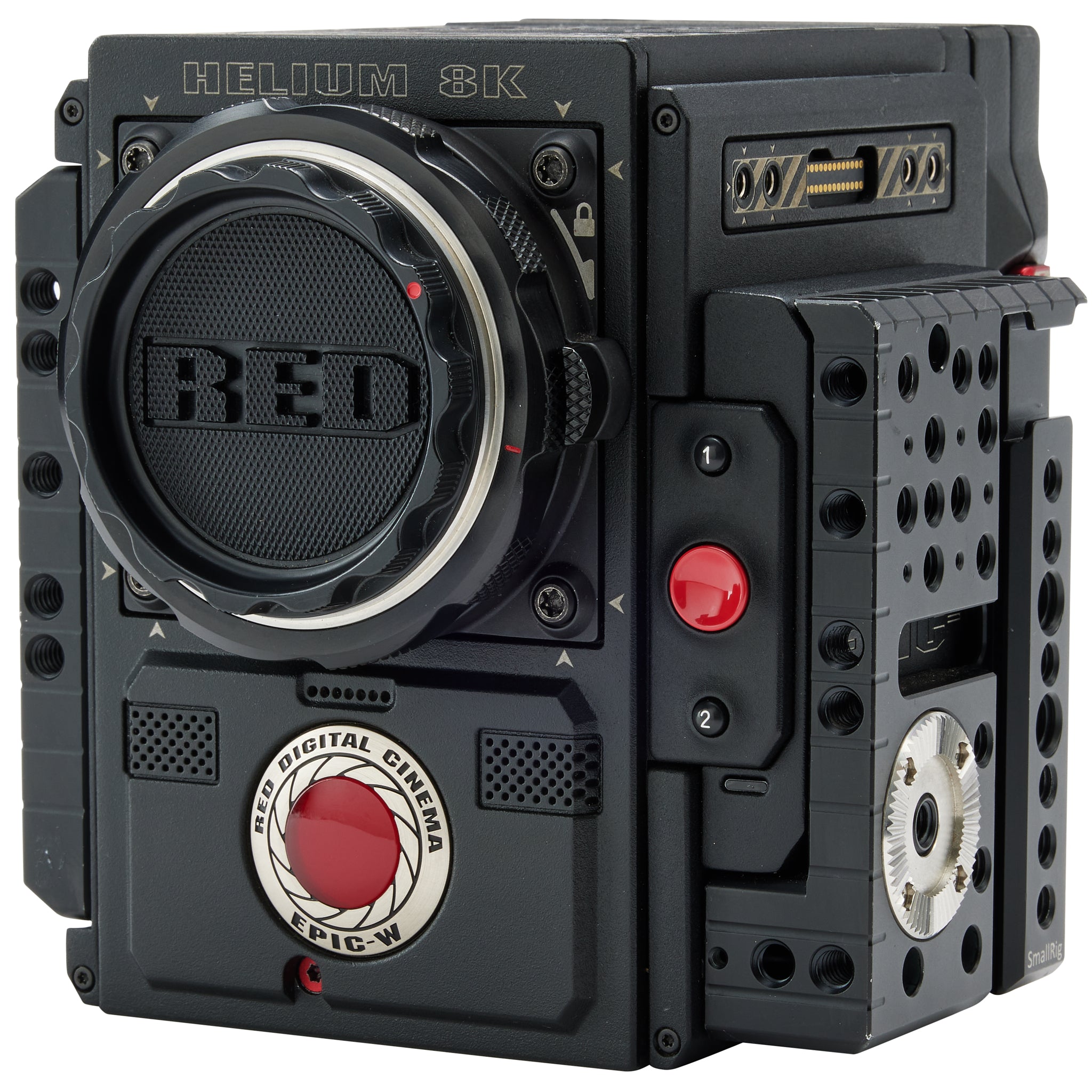

Red Epic-W Helium 8K Kit

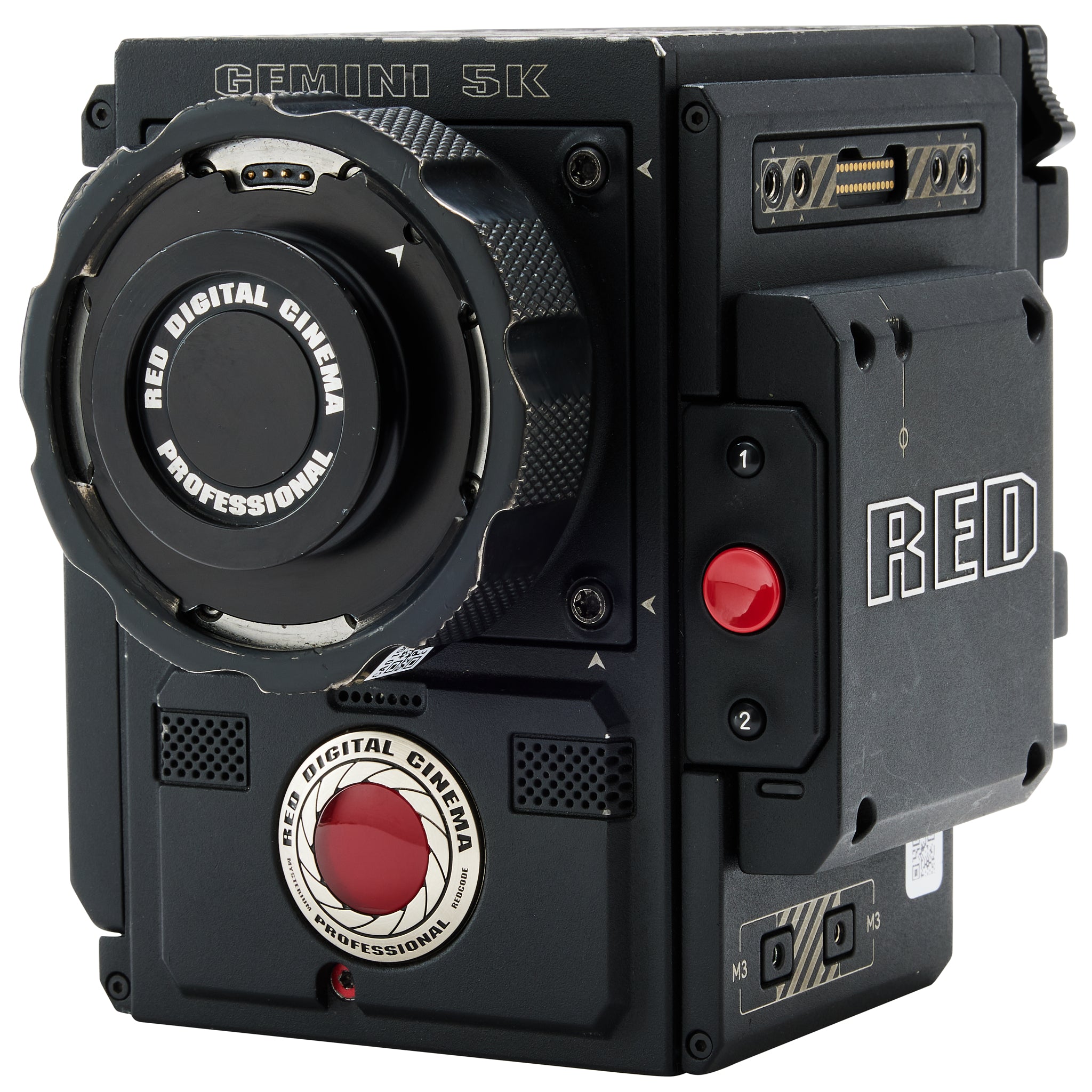

Red Gemini 5K Kit
