Teradek Bolt 1000 Wireless Monitoring 1:1 Kit

Teradek Bolt 1000 Wireless Monitoring 1:1 Kit

Quantity

The Teradek Bolt 1000 Wireless Monitoring 1:1 Kit is a professional-grade wireless video transmitter/receiver system, eliminating the need for tethered cables. The system supports both 3G-SDI and HDMI inputs/outputs, offering flexibility in connecting to various cameras and monitors. It also uses a compression algorithm that delivers near-zero visual degradation, ensuring high-quality video transmission up to 1,000 feet!

Add-Ons

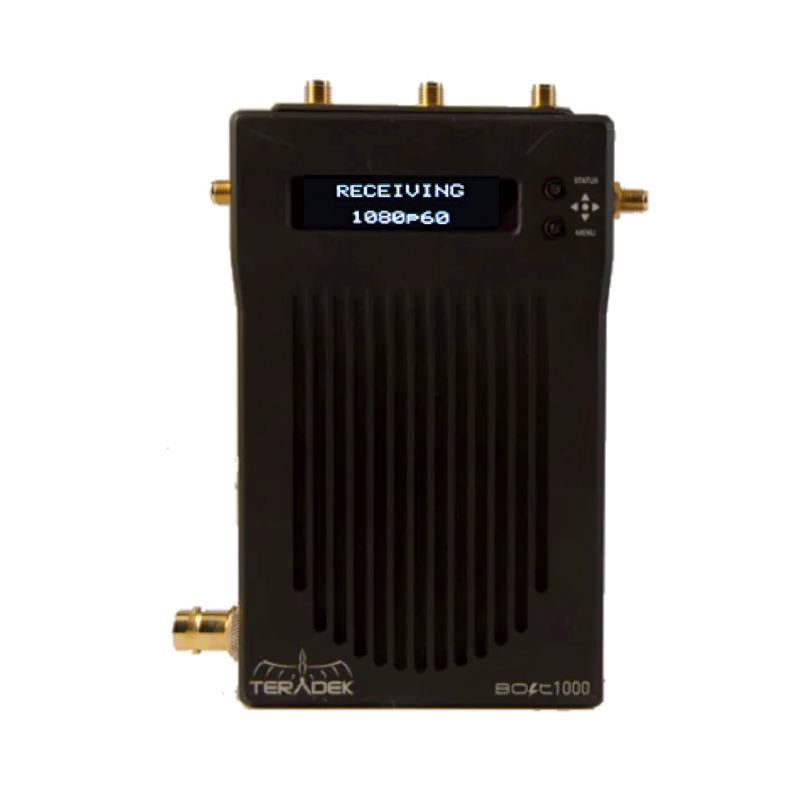

Teradek Bolt 1000 Wireless Monitoring Receiver

Pairs well with

Teradek Bolt 1000 Wireless Monitoring Receiver

$90.00

Out of stock
SmallHD 703 Bolt 7" Wireless Monitor Kit

Pairs well with

SmallHD 703 Bolt 7" Wireless Monitor Kit

$200.00

Out of stock
SmallHD 1703 P3X Daylight 17" Monitor Kit

Pairs well with

SmallHD 1703 P3X Daylight 17" Monitor Kit

$200.00

Out of stock
Teradek Bolt 1000 Wireless Monitoring 1:1 Kit

Teradek Bolt 1000 Wireless Monitoring 1:1 Kit

$300.00

  • (1) Teradek Bolt 1000 Transmitter

    (1) Teradek Bolt 1000 Receiver

    (5) Teradek Small Antenna

    (2) Teradek Large Antenna

    (2) SmallRig Universal Magic Arm

    (3) 2’ – SDI Cable

    (3) 3' - HDMI Cable

    (3) 1.5’ D-Tap To 2-Pin Lemo Cable

    (1) Teradek AC Power Supply

    (1) Hard Case

  • $300.00 Day/Weekend Rate
    $900.00 Week Rate

    We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.

    For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.

  • Construction:
    • Milled aluminum (chassis) and regulation-compliant PCB
    Video Inputs:
    • 3G/HD/SD-SDI: 1 x BNC (75 Ohms) (Available in HDMI)
    Video Outputs:
    • 3G/HD/SD-SDI: 1 x BNC (75 Ohms, loop-through out) (Available in HDMI)
    Color Sampling:
    • YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
    Latency:
    • <0.001 seconds (TX to RX without format conversion)
    Supported Resolutions:
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 480i: 59.94
    • 576i: 50
    Compression
    • Visually lossless
    Color Correction:
    • CDL/1024 1D LUT (supports 10-bit color)
    • 33x33x33 3D LUT (supports 10-bit color)
    Audio Compression:
    • 48 kHz, 24-bit PCM
    Audio Input:
    • Embedded
    Interfaces:
    • Switches: On/Off and Reset
    • Desktop App: Feature-rich Bolt Manager application for OS X and Windows
    • USB Interface Functionality: Upgrade via mini-USB
    Non-DFS Frequencies
    • UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
    • EU & JP: 5.19 to 5.23 GHz
    DFS Frequencies
    • US: 5.27 to 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 to 5.67 GHz
    RF Power:
    • 17 dBm EIRP
    Encryption:
    • AES-128
    Range:
    • Up to 1000'
    Unicast Multicast:
    • Unicast / Multicast
    Noise Rejection:
    • Can coexist with Wi-Fi and 5 GHz cordless phones
    Power Input:
    • 2-pin connector
    • 7 to 17 VDC
    Power Consumption:
    • Nominal 7.3 W (measured at 1080p60)
    Operating Temperature:
    • 32 to 104°F
    Mountable:
    • Multiple mounting options with M3 and 1/4" holes
    • 3/8" ARRI style accessory mount
    Dimensions:
    • 0.95” x 2.6” x 4.47"
    Weight:
    • 8 oz
