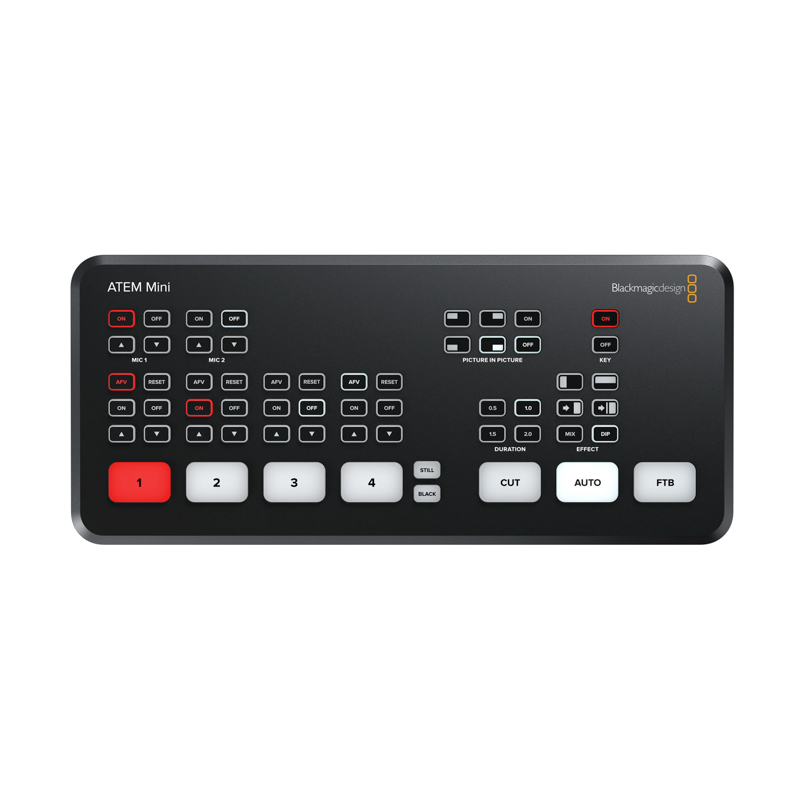

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
The Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcheris a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Features live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and more!
$45.00 Day/Weekend Rate
$135.00 Week Rate
$405.00 Month Rate
- Available M/E Layers:
5 M/E
- Effect Types:
1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
- Downstream Keys:
1 x Chroma, DVE
2 x Luma
- Audio Mixing:
2-Channel Mixing
- Switching Type:
Pushbutton
- Video Input Sources:
4
- Video Inputs:
4 x HDMI Female
- Input Video Format:
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
- Audio Inputs:
2 x 1/8" / 3.5 mm TRS Stereo Analog Female
- Embedded Audio Input:
HDMI: 2-Channel (per Input)
- Video Output Channels:
1
- Video Outputs:
1 x HDMI
- Output Video Format:
HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
- Embedded Audio Output:
HDMI: 2-Channel (per Output)
- Multiview Output:
Yes
- Monitor Output:
1 x HDMI
- Other I/O:
1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB-C Firmware, Control Input/Output
- OS Compatibility:
macOS 10.14 or Later
Windows 10
*As of April 2020: Check with the manufacturer for the most up-to-date compatibility
- Wi-Fi:
None
- Bluetooth:
None
- Power I/O:
1 x Barrel (12 VDC) Input
- Power Consumption:
36 W
- Operating Temperature:
41 to 104°F
- Storage Temperature:
14 to 140°F
- Operating Humidity:
0 to 90%
- Dimensions:
9.35” x 4.07” x 1.38"
- Weight:
19.4 oz
