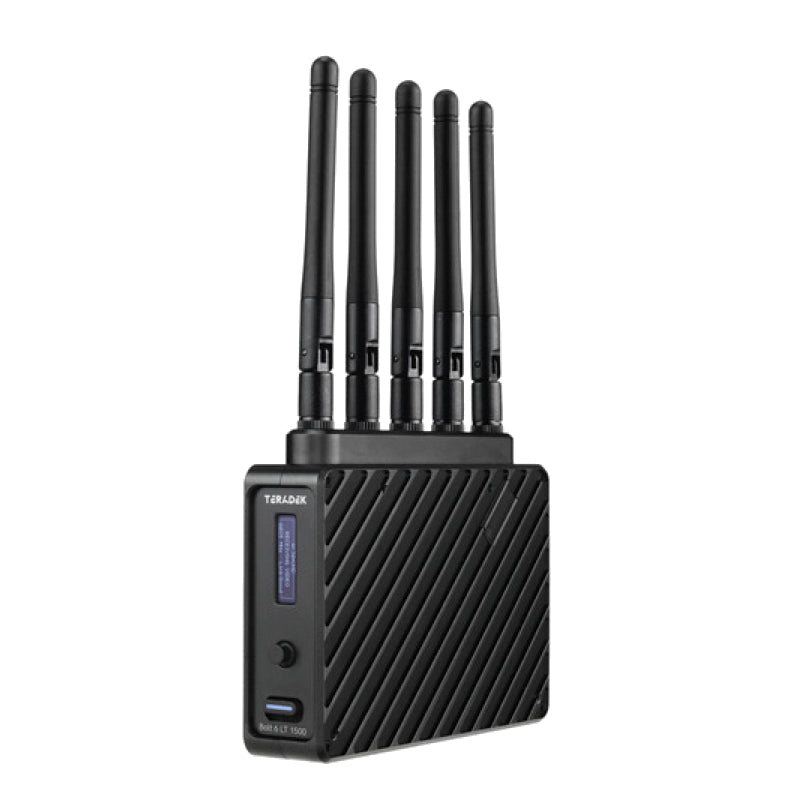

Teradek Bolt 6 LT 1500 Wireless Monitoring Receiver

Teradek Bolt 6 LT 1500 Wireless Monitoring Receiver

$120.00
calculated at checkout.
Quantity

Weekend = 1-day rate · Week = 3x day rate · Pickup and return days aren't charged

The Teradek Bolt 6 LT 1500 is a wireless video transmission system that transmits video up to 4K30 over 3G-SDI or HDMI, and can receive lossless HD video from up to 1,500 feet line of sight! It utilizes both 5GHz and 6GHz frequency bands for improved reliability and less interference. This receiver must be paired with a Bolt 6 LT 1500 Transmitter to achieve the mentioned specifications, but is cross-compatible with other Bolt 4K and Bolt 6 devices!



Add-Ons

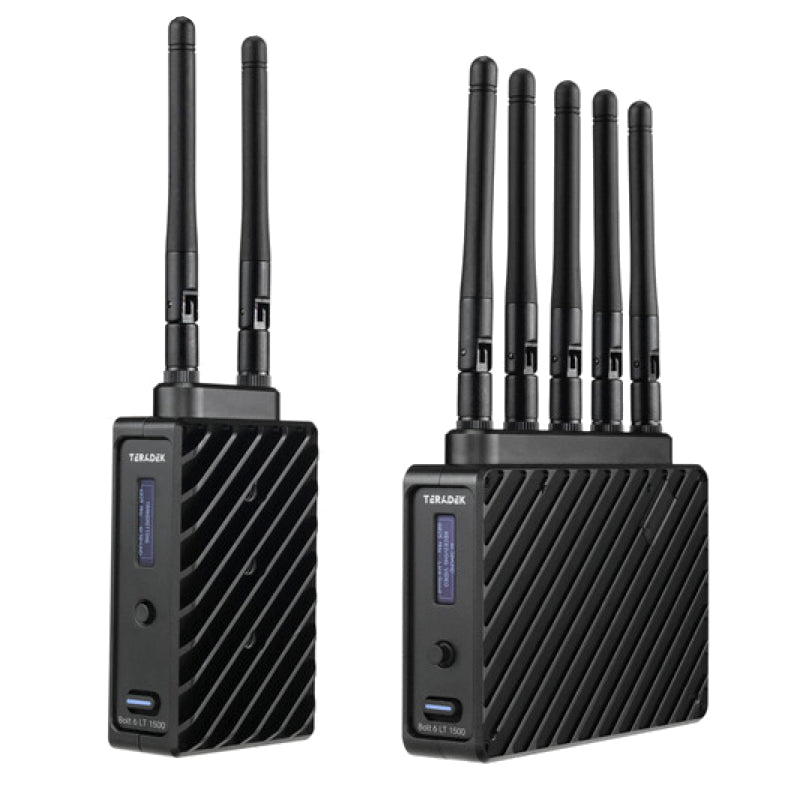

Teradek Bolt 6 LT 1500 Wireless Monitoring 1:1 Kit

Pairs well with

Teradek Bolt 6 LT 1500 Wireless Monitoring 1:1 Kit

$400.00

Out of stock
Anton Bauer Gold mount Titon SL 90 Lithium-Ion Battery

Pairs well with

(4) Anton Bauer 14V Titon SL 90 Gold Mount Battery Kit

$90.00

Out of stock

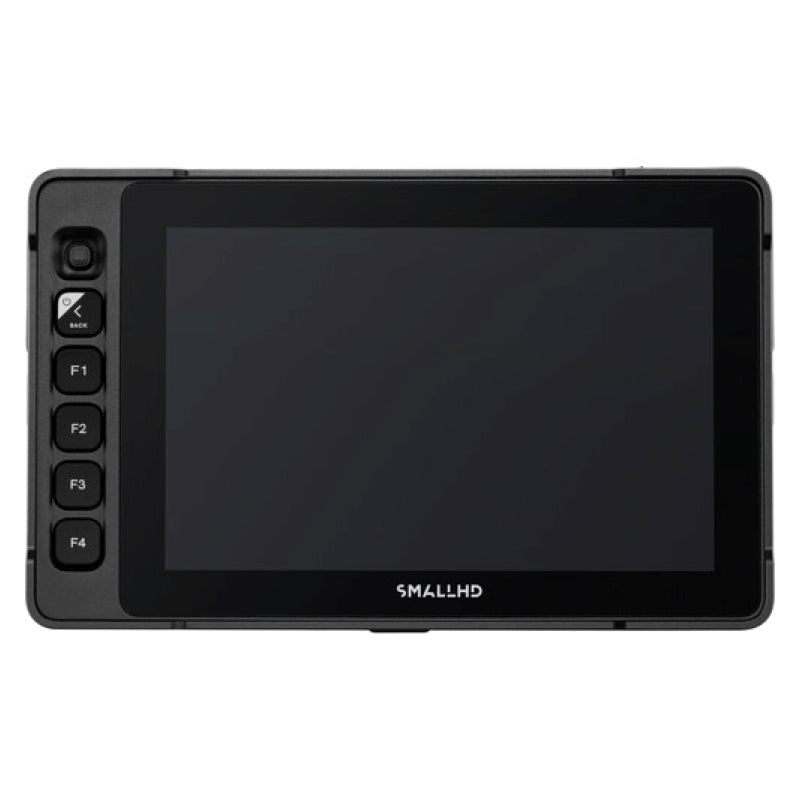

SmallHD Ultra 7" Monitor Kit

Pairs well with

SmallHD Ultra 7" Monitor Kit

$175.00

Out of stock
Teradek Bolt 6 LT 1500 Wireless Monitoring Receiver

Teradek Bolt 6 LT 1500 Wireless Monitoring Receiver

$120.00

  • (1) Teradek Bolt 6 LT 1500 Receiver

    (1) Teradek 14V Gold Mount Battery Plate - Female

    (1) Teradek 14V Gold Mount Battery Plate - Male

    (2) 4.9 - 7.3GHz H Antenna

    (4) 4.9 - 7.3GHz Flexible Antenna

    (1) Teradek Bolt 6 LT Antenna Support Bracket

    (1) Baby Pin Adapter: Baby Pin Female To 1/4"-20 Male

    (1) Teradek AC Power Adapter

    (1) 3' - HDMI Cable

    (1) 1.5' - 2-Pin Lemo To 2-Pin Lemo Cable

    (1) 1.5' - D-Tap To 2-Pin Lemo Cable

    (2) 3' - 12G SDI Cable

    (1) Hard Case

  • $120.00 Day/Weekend Rate
    $360.00 Week Rate

    We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.

    For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.

  • Antenna I/O:
    • 5x RP-SMA Female
    Video I/O:
    • 1x HDMI 1.4b Output
    • 1x BNC (3G-SDI) Output
    Embedded Audio:
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O:
    • No
    Power I/O:
    • 1x LEMO 2-Pin (28 VDC) Input
    Other I/O:
    • 1x Micro-USB Input
    Encryption:
    • Yes, 256-Bit AES
    Wireless Range:
    • 1500' (Line-of-Sight)
    Channel Bandwidth:
    • 40 MHz, 20 MHz
    Frequency Range:
    • Non-DFS Frequencies
    • US: 5.94 to 6.42 GHz
    • US: 5.19 to 5.23 GHz
    • US: 5.75 to 5.79 GHz
    • DFS Frequencies
    • US: 5.27 to 5.67 GHz
    Latency:
    • < 0.01 ms
    RF Power:
    • 21 dBm
    Wi-Fi:
    • No
    Bluetooth:
    • Yes
    Mobile App Compatible:
    • No
    Cellular Support:
    • No
    Video Format:
    • HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • UHD 4K: 30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 50
    • 480i: 59.94
    • SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format:
    • 2-Channel 24-Bit 48 kHz
    Timecode Support:
    • Yes
    Input Power:
    • 6 to 28 VDC
    Battery:
    • Gold Mount Plate
    Power Consumption:
    • 11 W
    Tripod/Accessory Mounting:
    • 1x 1/4"-20 Female
    • 1x 3/8"-16 Female
    Environmental Resistance:
    • No
    Operating Conditions:
    • 32 to 72°F
    Material of Construction:
    • Aluminum, Polycarbonate
    Dimensions:
    • 4.8” x 3.7” x 1.1"
    Weight:
    • 10.30 oz (Excluding Battery Plate)
