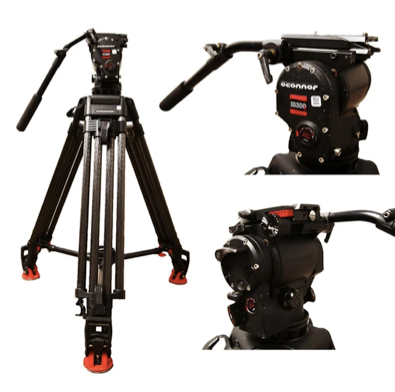

O'Connor 1030Ds 100mm Ball Head Tripod System

Quantity

Weekend = 1-day rate · Week = 3x day rate · Pickup and return days aren't charged

The O'Connor 1030Ds 100mm Ball Head Tripod System offers a wealth of features that have been borrowed from the larger O'Connor 2575 and 2065 heads, enabling cinematographers to seamlessly transition from heavier to lighter payload camera setups. Featuring step-less, ultra-smooth pan and tilt fluid drag that is specifically enhanced to provide ultimate control and stability, as well as the patented O'Connor Sinusoidal Counterbalance system, providing true, accurate balance at any point in the tilt range.


Add-Ons

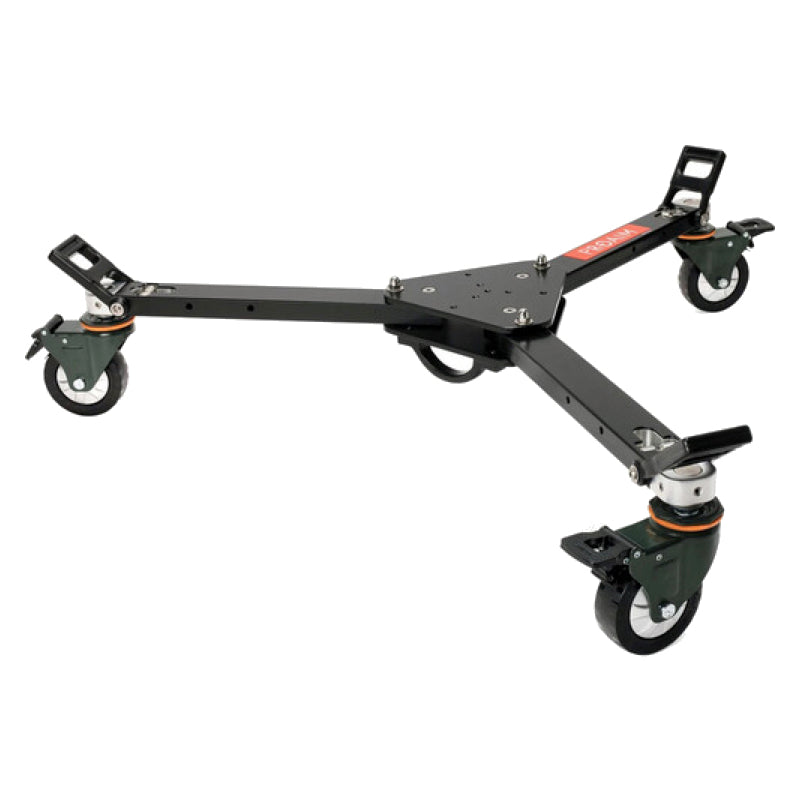

Proaim Heavy-Duty Rolling Tripod Spreader

Pairs well with

Out of stock

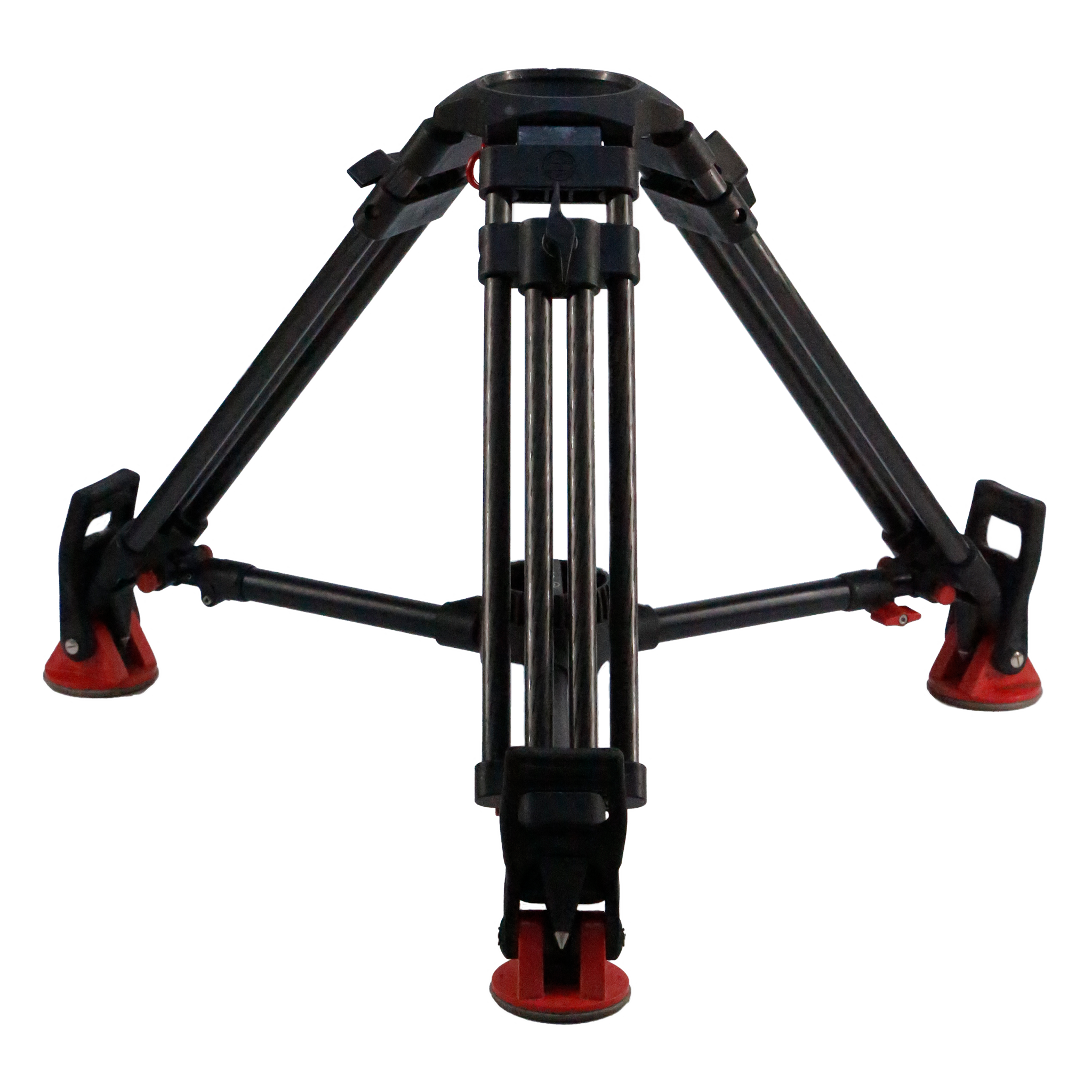

Sachtler 100mm Ball Baby Tripod Legs

Pairs well with

Out of stock

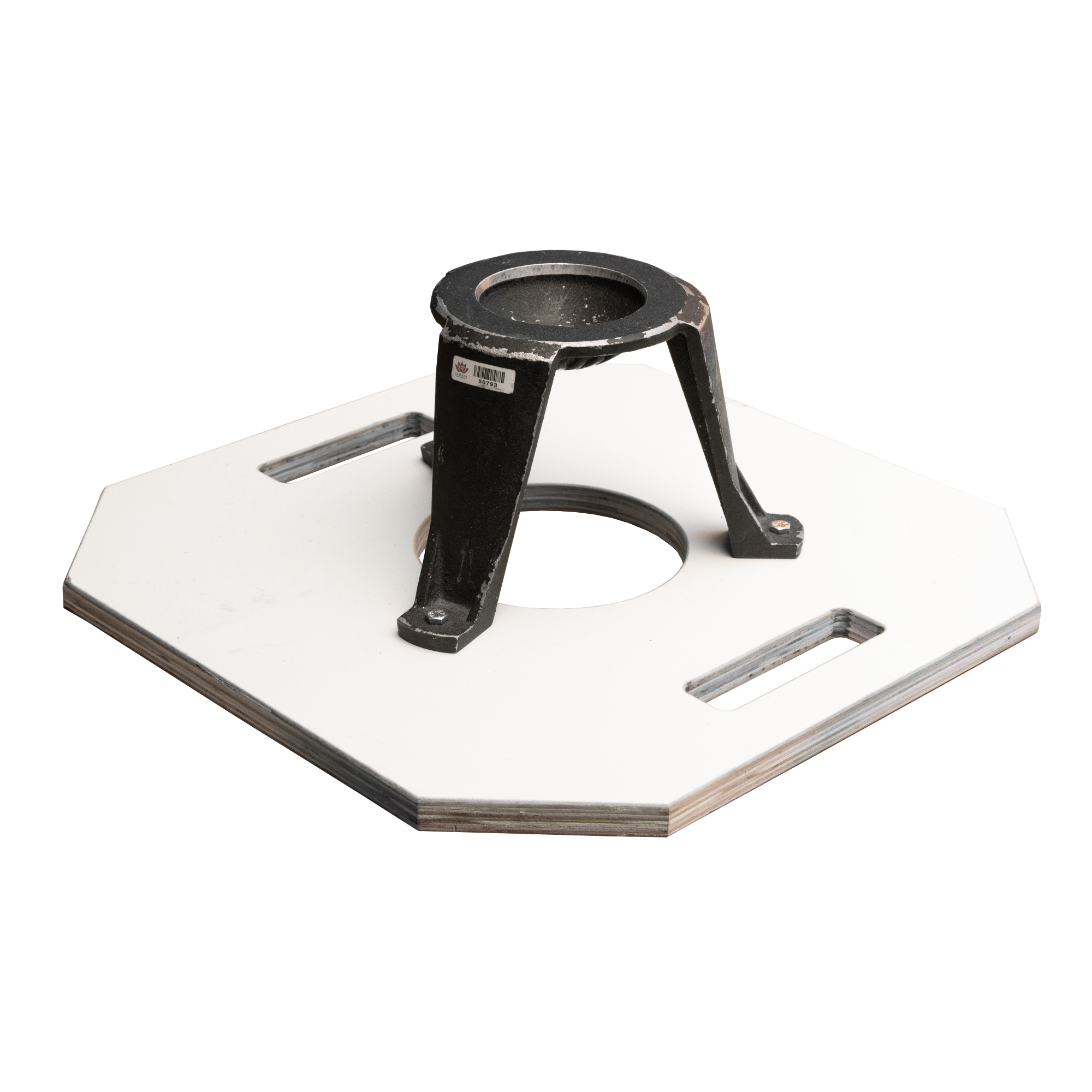

100mm Bowl Hi Hat With Pancake

Pairs well with

Out of stock

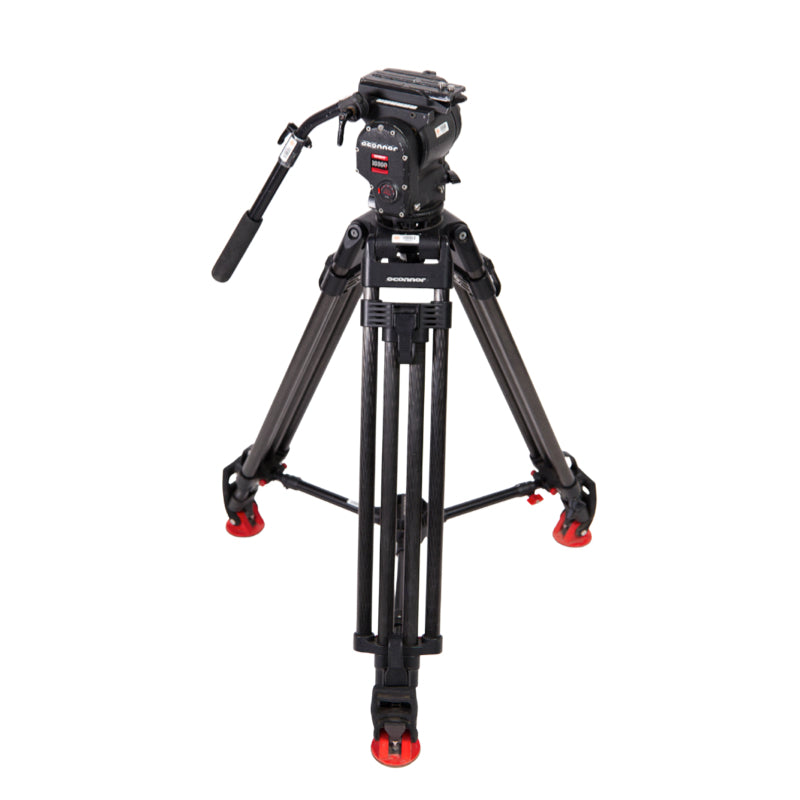

O'Connor 1030Ds 100mm Ball Head Tripod System

O'Connor 1030Ds 100mm Ball Head Tripod System

$95.00

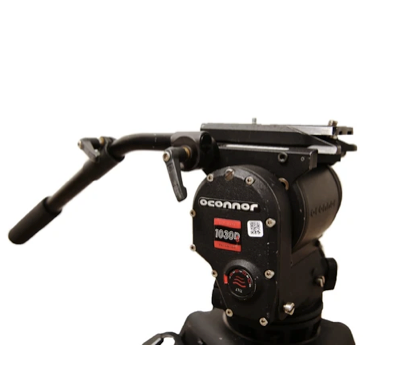

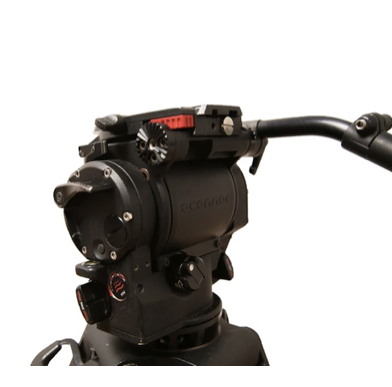

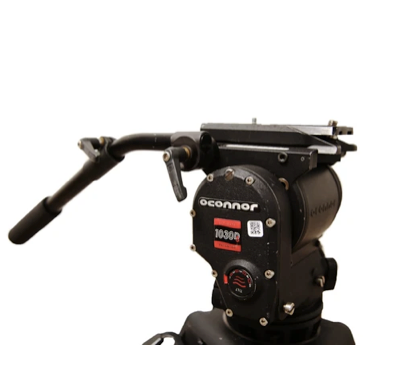

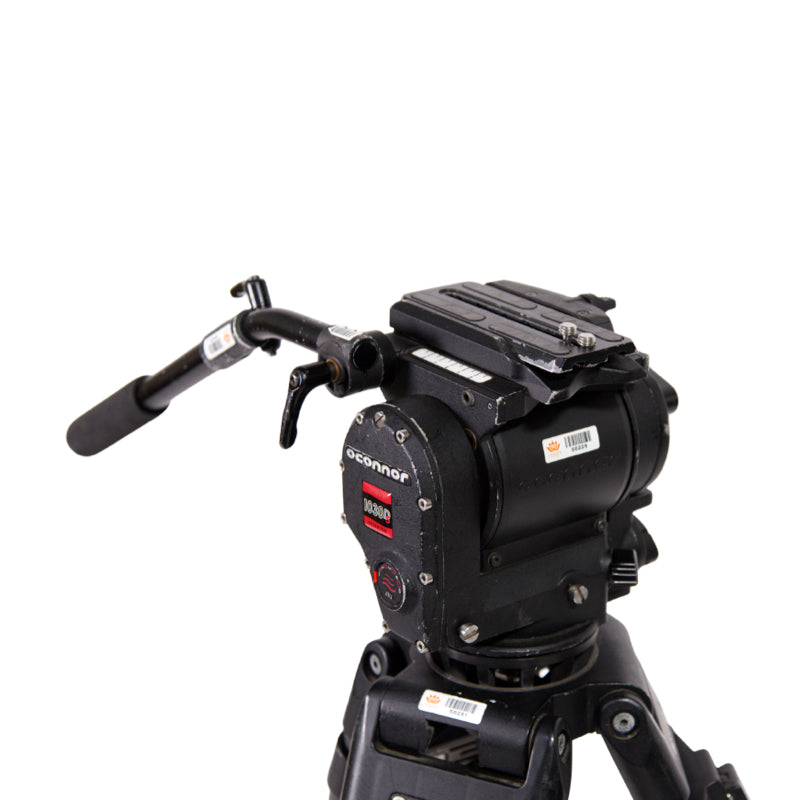

  • (1) O'Connor Ultimate 1030Ds 100mm Ball Mount Fluid Head (Max Payload 54lbs)

    (1) O'Connor 1030Ds Quick Release Plate With (2) 3/8"-16 Tie Down

    (1) O'Connor 1030Ds Pan/Tilt Telescopic Handle

    (1) 100mm Bowl Mount Tie Down

    (1) O'Connor 30L CF 2-Stage 100mm Tripod Legs

    (1) O'Connor Mid-Level Spreader

    (1) Hard Tuffpak Rolling Tripod Case

  • $95.00 Day/Weekend Rate
    $285.00 Week Rate

    We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.

    For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.

  • Tripod Head:
    Base Mount:
    • 100mm Half Ball
    Camera Plate Features:
    • Sliding Balance Plate
    Drag Control Tilt & Pan:
    • Continuous
    Panning Range:
    • 360°
    Independent Pan Lock:
    • Yes
    Independent Tilt Lock:
    • Yes
    Counterbalance:
    • Continuous
    Bubble Level:
    •  1 x Illuminated
    Vertical Tilt:
    • +90° to -90°
    Dimensions:
    • 6.6”x7.6”x4.6"
    Weight:
    • 8.7lbs
    Load Capacity:
    • 54lbs at CoG 4" / 102 mm
    • 41lbs at CoG 6" / 152 mm
    • 33lbs at CoG 8" / 203 mm

    Two-Stage Standard Legs:
    Head Mount Type:
    • 100 mm Bowl
    Maximum Working Height:
    • 61.8"
    Minimum Working Height:
    •  22"
    Folded Length:
    •  29.5"
    Materials:
    •  Aluminum, Carbon Fiber
    Leg Lock Type:
    •  Flip Lock
    Leg Sections:
    • 3
    Weight:
    • 8.8 lbs
    Load Capacity:
    • 209 lbs
    • Counterbalances down to zero with an infinitely adjustable, ergonomic crank-style counterbalance control that simply pulls out of the rear of the head
    • Step-less, ultra-smooth pan and tilt fluid drag specifically enhanced to provide ultimate control and stability
    • Controls are located on the left-hand side of the head for intuitive cine-style shooting
    • Side load platform enables rapid attachment of the camera as well as an extended range of movement for balancing front heavy setups
    • Action Brakes for pan and tilt unlock through a single-handed squeeze
