Teradek Bolt 6 XT Max Wireless Monitoring 1:1 Kit
Teradek Bolt 6 XT Max Wireless Monitoring 1:1 Kit
Teradek Bolt 6 XT Max Wireless Monitoring 1:1 Kit
Teradek Bolt 6 XT Max Wireless Monitoring 1:1 Kit

Teradek Bolt 6 XT Max Wireless Monitoring 1:1 Kit

$600.00
Quantity

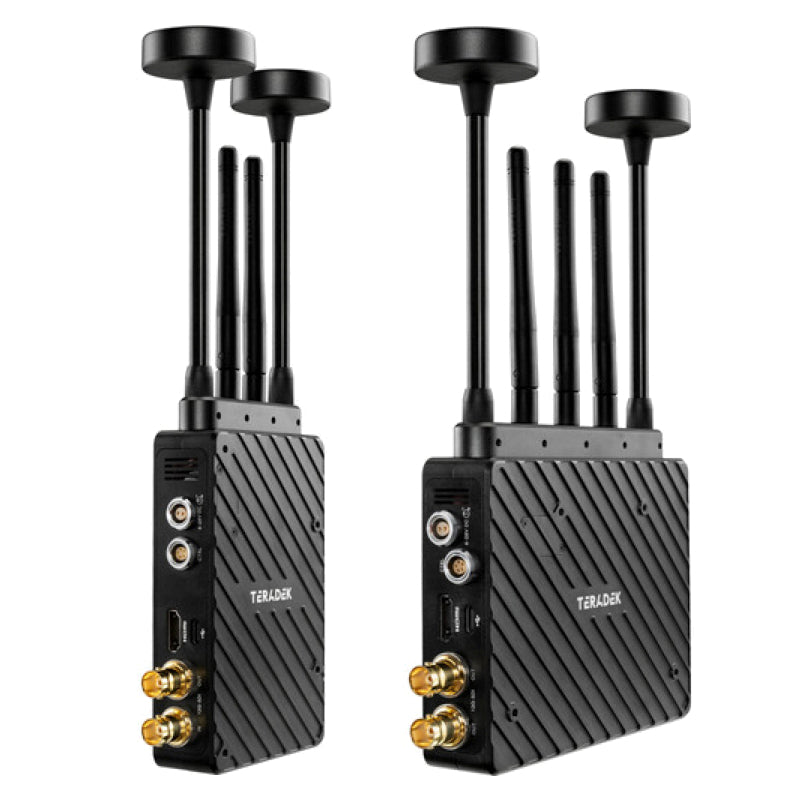

The Teradek Bolt 6 XT Max is a wireless video transmission system that supports 4K60 10-bit 4:2:2 HDR video! It transmits video over 5GHz and 6GHz radio frequencies, offering a range of up to 5,000 feet (line of sight) when used with an Array Antenna and Broadcast Mode. Our base kit includes one transmitter, one receiver and an Array Antenna, with the option to add on more receivers as needed! Each unit comes with a gold mount plate for a high-capacity power option. This system must be paired with Bolt 6 XT Max units to achieve the mentioned specifications, but is cross-compatible with other Bolt 4K and Bolt 6 devices!



Add-Ons

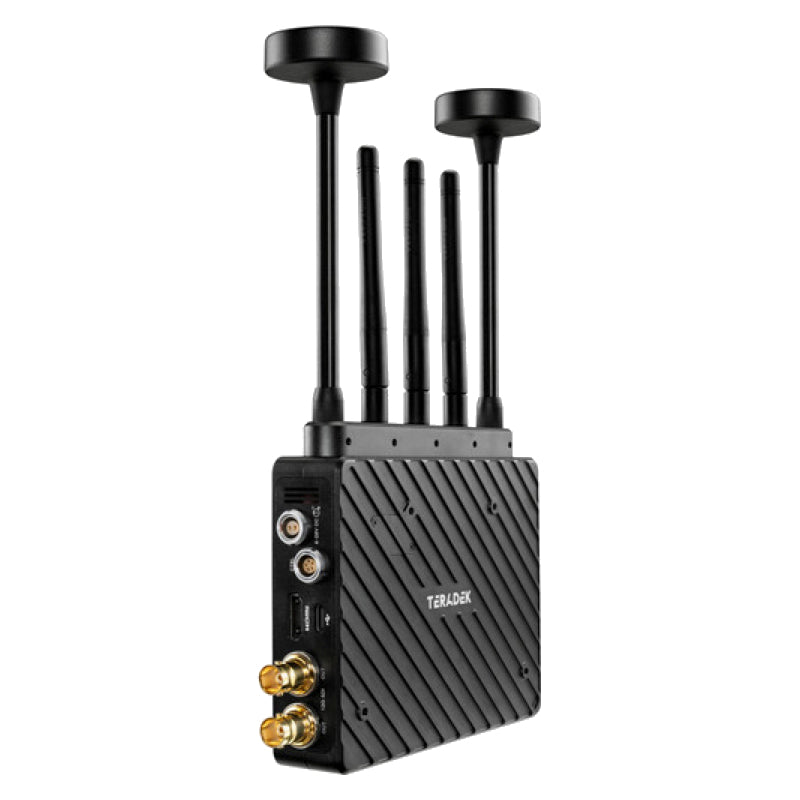

Teradek Bolt 6 XT Max Wireless Monitoring Receiver

Rent It With

Teradek Bolt 6 XT Max Wireless Monitoring Receiver

$180.00

Out of stock

Anton Bauer Gold mount Titon SL 90 Lithium-Ion Battery

Rent It With

(4) Anton Bauer 14V Titon SL 90 Gold Mount Battery Kit

$90.00

Out of stock

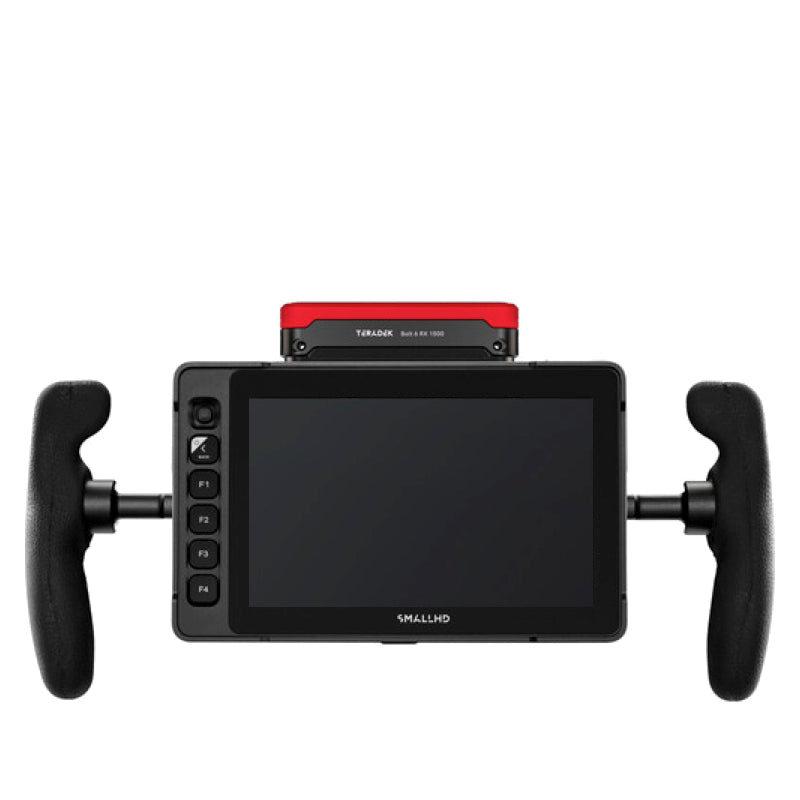

SmallHD Ultra 7 Bolt 6 Wireless 7" Monitor Kit

Rent It With

SmallHD Ultra 7 Bolt 6 Wireless 7" Monitor Kit

$275.00

Out of stock

[{"variant_id":"42263549542518" , "metafield_value":""}]

  • (1) Teradek Bolt 6 XT Max Transmitter

    (1) Teradek 14V Gold Mount Battery Plate - Female

    (1) Teradek 14V Gold Mount Battery Plate - Male

    (2) 4.9 - 7.3GHz H Antenna

    (3) 4.9 - 7.3GHz Flexible Antenna

    (1) Teradek Bolt 6 XT Antenna Support Bracket

    (1) 5" Noga Arm 1/4" 20 To 1/4" 20

    (1) 1.5' - HDMI Cable

    (1) 1.5' - D-Tap To 2-Pin Lemo Cable

    (2) 1.5' - 2-Pin Lemo To 2-Pin Lemo Cable

    (2) 1' - 12G SDI Cable

    (1) Teradek Bolt 6 Array - Gold Mount

    (1) Baby Pin Adapter: Baby Female to 3/8"-16 Male

    (5) 3.9" - RP-SMA Male to Male Antenna Cable

    (1) 4.9 - 7.3GHz Rigid Antenna

    (1) Teradek Bolt 6 XT Max Receiver

    (1) Teradek 14V Gold Mount Battery Plate - Female

    (1) Teradek 14V Gold Mount Battery Plate - Male

    (2) 4.9 - 7.3GHz H Antenna

    (4) 4.9 - 7.3GHz Flexible Antenna

    (1) Teradek Bolt 6 XT Antenna Support Bracket

    (1) Baby Pin Adapter: Baby Pin Female To 1/4"-20 Male

    (1) Teradek AC Power Adapter

    (1) 3' - HDMI Cable

    (1) 1.5' - 2-Pin Lemo To 2-Pin Lemo Cable

    (1) 1.5' - D-Tap To 2-Pin Lemo Cable

    (2) 3' - 12G SDI Cable

    (1) Hard Case

  • $600.00 Day/Weekend Rate
    $1,800.00 Week Rate
    $5,400.00 Month Rate

    We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.

    For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.

  • Transmitter:
    Antenna I/O:
    • 2x RP-SMA Female
    Video I/O:
    • 1x HDMI 2.0 Input
    • 1x BNC (12G-SDI) Input
    • 1x BNC (12G-SDI) Loop Output
    Embedded Audio:
    • HDMI: 2-Channel
    • SDI
    Audio I/O:
    • No
    Power I/O:
    • 1x LEMO 2-Pin (28 VDC) Input
    Other I/O:
    • 1x USB-C Input
    • 1x LEMO 5-Pin 2.0 Output
    Encryption:
    • Yes, 256-Bit AES
    Wireless Range:
    • 5000' (Line-of-Sight)
    Channel Bandwidth:
    • 40 MHz, 20 MHz
    Frequency Range:
    • Non-DFS Frequencies
    • US: 5.94 to 6.42 GHz
    • US: 5.19 to 5.23 GHz
    • US: 5.75 to 5.79 GHz
    • DFS Frequencies
    • US: 5.27 to 5.67 GHz
    Latency:
    • < 0.01 ms
    RF Power:
    • 23 dBm
    Wi-Fi:
    • No
    Bluetooth:
    • Yes
    Mobile App Compatible:
    • No
    Cellular Support:
    • No
    Video Format:
    • HDMI (10-Bit 4:4:4/4:2:2)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    • SDI (10-Bit 4:4:4/4:2:2)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format:
    • 2-Channel 24-Bit 48 kHz
    Timecode Support:
    • Yes
    Input Power:
    • 6 to 28 VDC
    Battery Plate:
    • Gold Mount
    Power Consumption:
    • 20 W
    Tripod/Accessory Mounting:
    • 1x 1/4"-20 Female
    Environmental Resistance:
    • No
    Operating Conditions:
    • 32 to 72°F
    Material of Construction:
    • Aluminum, Polycarbonate
    Dimensions:
    • 5.2” x 3.6” x 1.1" (Excluding Battery Plate)
    Weight:
    • 12.13 oz (Excluding Battery Plate)

    Receiver:
    Antenna I/O:
    • 5x RP-SMA Female
    Video I/O:
    • 1x HDMI 2.0 Output
    • 1x BNC (12G-SDI) Output
    Embedded Audio:
    • HDMI: 2-Channel
    • SDI: 2-Channel
    Audio I/O:
    • No
    Power I/O:
    • 1x LEMO 2-Pin (28 VDC) Input
    Other I/O:
    • 1x USB-C Input
    • 1x LEMO 5-Pin 2.0 Output
    Encryption:
    • Yes, 256-Bit AES
    Wireless Range:
    • 5000' / 1524 m (Line-of-Sight)
    Channel Bandwidth:
    • 40 MHz, 20 MHz
    Frequency Range:
    • Non-DFS Frequencies
    • US: 5.94 to 6.42 GHz
    • US: 5.19 to 5.23 GHz
    • US: 5.75 to 5.79 GHz
    • DFS Frequencies
    • US: 5.27 to 5.67 GHz
    Latency:
    • < 0.01 ms
    RF Power:
    • 21 dBm
    Wi-FiL
    • No
    Bluetooth:
    • Yes
    Mobile App Compatible:
    • No
    Cellular Support:
    • No
    Video Format:
    • HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    • SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 576i: 50
    • 480p: 60/59.94
    • 480i: 59.94
    Audio Format:
    • 2-Channel 24-Bit 48 kHz
    Timecode Support:
    • Yes
    Input Power:
    • 6 to 28 VDC
    Battery Plate:
    • Gold Mount
    Power Consumption:
    • 18 W
    Tripod/Accessory Mounting:
    • 1x 1/4"-20 Female
    • 1x 3/8"-16 Female
    Environmental Resistance:
    • No
    Operating Conditions:
    • 32 to 72°F
    Material of Construction:
    • Aluminum, Polycarbonate
    Dimensions:
    • 5.5” x 4.4” x 1.1" (Excluding Battery Plate)
    Weight:
    • 15.17 oz (Excluding Battery Plate)
