Teradek Bolt 6 LT Max Wireless Monitoring 1:1 Kit

Teradek Bolt 6 LT Max Wireless Monitoring 1:1 Kit

$500.00

Quantity

1
2
3
4
5
6
7
8
9
10 +

Quantity

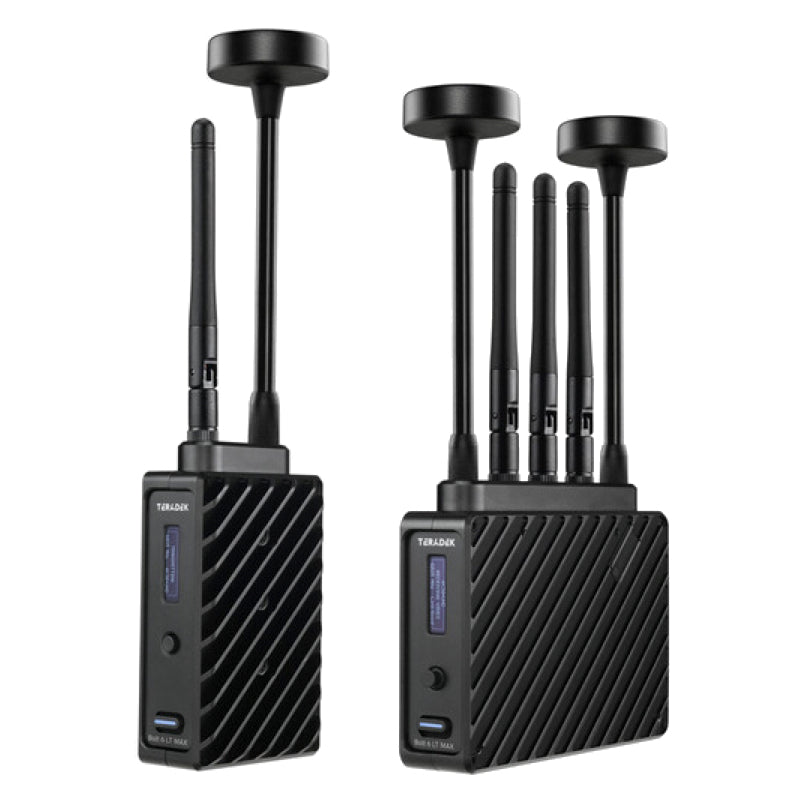

The Teradek Bolt 6 LT Max is a high-performance wireless video system that allows for the transmission and reception of video signals with a range of up to 5,000 feet! It supports UHD 4K30 HDR video with 10-bit 4:2:2 HDR and features a bright OLED display. The system features improved metadata, range, and compatibility over its predecessors, and it supports HDMI/SDI cross conversion. Our base kit includes one transmitter, one receiver and an Array Antenna, with the option to add on more receivers as needed! And each unit comes with a gold mount plate for a high-capacity power option. This system must be paired with Bolt 6 LT Max units to achieve the mentioned specifications, but is cross-compatible with other Bolt 4K and Bolt 6 devices!

Add-Ons

Rent It With

Teradek Bolt 6 LT Max Wireless Monitoring Receiver

$150.00

Anton Bauer Gold mount Titon SL 90 Lithium-Ion Battery

Rent It With

(4) Anton Bauer 14V Titon SL 90 Gold Mount Battery Kit

$90.00

Rent It With

SmallHD Ultra 7 Bolt 6 Wireless 7" Monitor Kit

$275.00

(1) Teradek Bolt 6 LT Max Transmitter
(1) 4.9 - 7.3GHz H Antenna
(2) 4.9 - 7.3GHz Flexible Antenna
(1) Teradek Bolt 6 LT Antenna Support Bracket
(1) 5" Noga Arm 1/4" 20 To 1/4" 20
(1) 1.5' - HDMI Cable
(1) 1.5' - D-Tap To 2-Pin Lemo Cable
(2) 1.5' - 2-Pin Lemo To 2-Pin Lemo Cable
(2) 1' - 12G SDI Cable

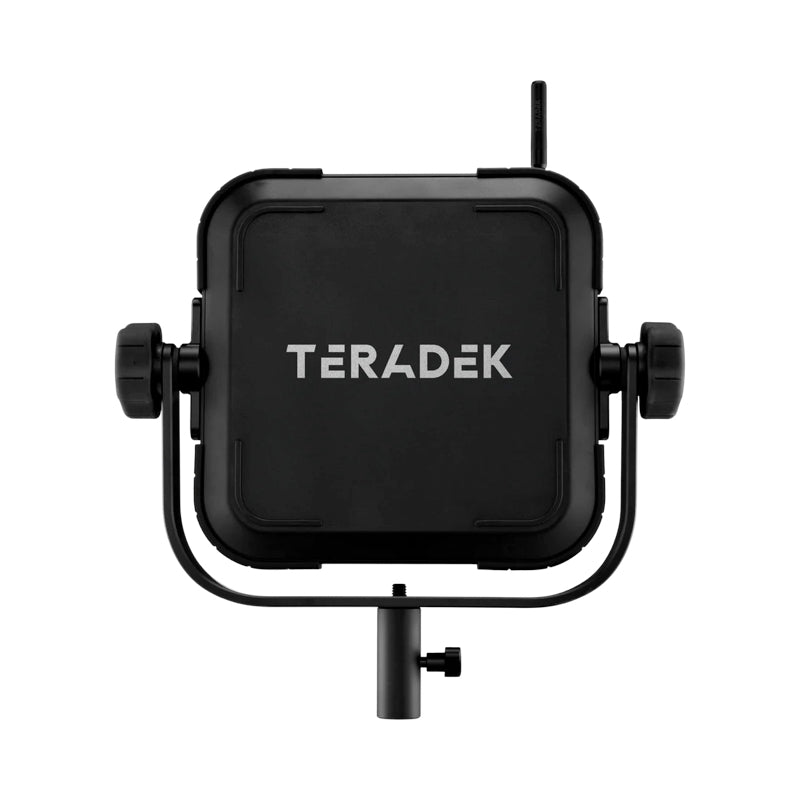

(1) Teradek Bolt 6 Array - Gold Mount
(1) Baby Pin Adapter: Baby Female to 3/8"-16 Male
(5) 3.9" - RP-SMA Male to Male Antenna Cable
(1) 4.9 - 7.3GHz Rigid Antenna
(1) Teradek Bolt 6 LT Max Receiver
(1) Teradek 14V Gold Mount Battery Plate - Female
(1) Teradek 14V Gold Mount Battery Plate - Male
(2) 4.9 - 7.3GHz H Antenna
(4) 4.9 - 7.3GHz Flexible Antenna
(1) Teradek Bolt 6 LT Antenna Support Bracket
(1) Baby Pin Adapter: Baby Pin Female To 1/4"-20 Male
(1) Teradek AC Power Adapter
(1) 3' - HDMI Cable
(1) 1.5' - 2-Pin Lemo To 2-Pin Lemo Cable
(1) 1.5' - D-Tap To 2-Pin Lemo Cable
(2) 3' - 12G SDI Cable
(1) Hard Case
$500.00 Day/Weekend Rate
$1,500.00 Week Rate
$4,500.00 Month Rate
We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.
For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.
Transmitter:
Antenna I/O:
2x RP-SMA Female
Video I/O:
1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Loop Output
Embedded Audio:
SDI: 2-Channel
HDMI: 2-Channel
Audio I/O:
No
Power I/O:
1x LEMO 2-Pin (28 VDC) Input
Other I/O:
1x Micro-USB Input
Encryption:
Yes, 256-Bit AES
Wireless Range:
5000' / 1524 m (Line-of-Sight)
3000' / 914.4 m (Line-of-Sight)
Channel Bandwidth:
40 MHz, 20 MHz
Frequency Range:
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency:
0.1 ms
RF Power:
23 dBm
Wi-Fi:
No
Bluetooth:
Yes
Mobile App Compatible:
No
Cellular Support:
No
Video Format:
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 50
480i: 59.94
SDI (10-Bit 4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 50
480i: 59.94
Audio Format:
2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression:
Uncompressed
Timecode Support:
Yes
Input Power:
6 to 28 VDC
Power Consumption:
9 W
Tripod/Accessory Mounting:
1x 1/4"-20 Female
Environmental Resistance:
No
Operating Conditions:
32 to 72°F
Material of Construction:
Aluminum, Polycarbonate
Dimensions:
4.1 x 2.4 x 1.3" (Excluding Battery Plate)
Weight:
7.27 oz (Excluding Battery Plate)
Receiver:
Antenna I/O:
5x RP-SMA Female
Video I/O:
1x HDMI 1.4b Output
1x BNC (3G-SDI) Output
Embedded Audio:
SDI: 2-Channel
HDMI: 2-Channel
Audio I/O:
No
Power I/O:
1x LEMO 2-Pin (28 VDC) Input
Other I/O:
1x Micro-USB Input
Encryption:
Yes, 256-Bit AES
Wireless Range:
5000' / 1524 m (Line-of-Sight)
3000' / 914.4 m (Line-of-Sight)
Channel Bandwidth:
40 MHz, 20 MHz
Frequency Range:
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency:
0.1 ms
RF Power:
21 dBm
Wi-Fi:
No
Bluetooth:
Yes
Mobile App Compatible:
Yes: Android & iOS
Cellular Support:
No
Video Format:
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 50
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 50
480i: 59.94
Audio Format:
2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression:
Uncompressed
Timecode Support:
Yes
Input Power:
6 to 28 VDC
Battery:
Gold Mount Plate
Power Consumption:
11 W
Tripod/Accessory Mounting:
1x 1/4"-20 Female
1x 3/8"-16 Female
Environmental Resistance:
No
Operating Conditions:
32 to 72°F
Material of Construction:
Aluminum, Polycarbonate
Dimensions:
4.8 x 3.7 x 1.1" (Excluding Battery Plate)
Weight:
10.30 oz (Excluding Battery Plate)
- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
- Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
- Transmits to an unlimited number of receivers in broadcast mode
- SDI Eye Pattern Tool to check SDI cable integrity
- Improved "long-range" mode
- Input up to 4K via HDMI video; input/output 1080p via 3G-SDI, and transmit up to 4K30 video
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- HDR workflow support with HDR-10, PQ, and HLG standards
- Smaller and lighter chassis design than other Bolt transmitters
- Transmit metadata, timecode, and stop/start triggers over a wireless connection
- Simultaneously transmit to up to six Bolt 6 or Bolt 4K series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
