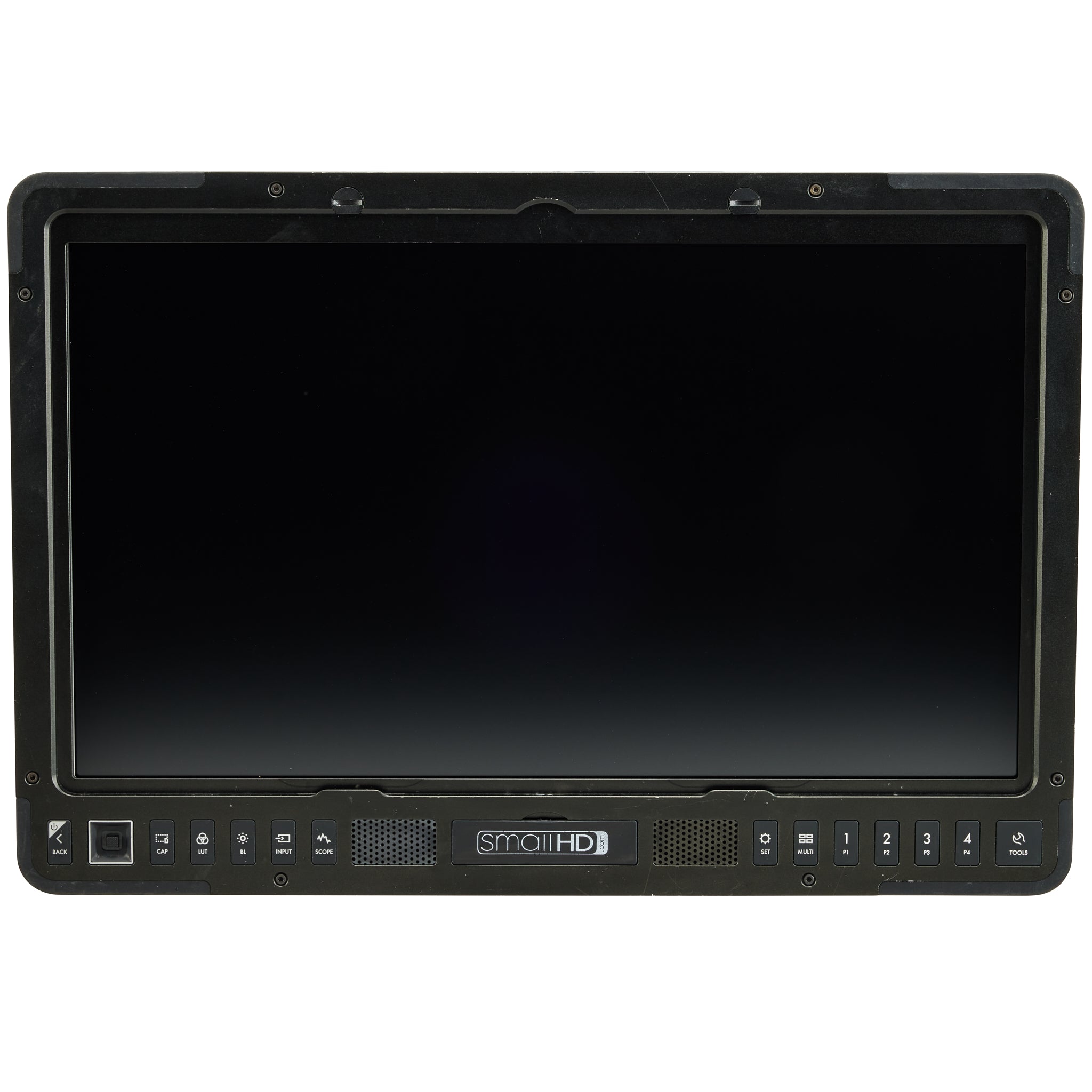

• (1) SmallHD 1703 HDR Daylight SDI & HDMI 17" Monitor

    (1) Hoodman 17" Sun Hood

    (1) SmallHD 1703 Screen Protector

    (1) SmallHD Gold Mount Plate

    (1) Cheese Plate

    (1) 1' - D-Tap To 4-Pin XLR Cable (Coiled)

    (1) 25' - SDI Cable

    (1) 30' - HDMI Cable

    (1) IEC Cable

    (1) SmallHD 8GB Memory Card

    (1) Adjustable Angle Stand Mount

    (1) Hard Case

  • $150.00 Day/Weekend Rate
    $450.00 Week Rate
    $1,350.00 Month Rate

    We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.

    For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.

  • Panel Type:

    IPS

    Screen Size:

    17"

    Resolution:

    1920 x 1080

    Pixel Density:

    128 PPI

    Aspect Ratio:

    16:9

    Active Area:

    15 x 8.42

    Brightness:

    1000 cd/m²

    Contrast Ratio:

    600:1

    Color Gamut:

    100% REC709

    Bit Depth:

    8-bit

    Viewing Angle:

    Left/Right: 70°
    Up: 50°
    Down: 70°

    Backlight Type:

    LED (adjustable)

    Video I/O:

    Inputs:
    2 x SDI
    1 x HDMI
    Outputs:
    2 x SDI
    1 x HDMI

    Input Formats:

    SDI: 8-bit YCC 4:2:2
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080PsF23.98/24/25/29.97/30
    1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
    720p23.98/24/25/29.97/30/50/59.94/60
    HDMI: 8-bit YCC 4:2:2, 8/10/12-bit RGB and YCC 4:4:4
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080PsF23.98/24/25/29.97/30
    1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
    720p23.98/24/25/29.97/30/50/59.94/60
    576p50 (high-speed 576p100)
    480p59.94/60 (high-speed 480p119.88/120)
    Audio: HDMI and SDI embedded

    Output Formats:

    SDI: 8-bit YCC 4:2:2
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080PsF23.98/24/25/29.97/30
    1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
    720p23.98/24/25/29.97/30/50/59.94/60
    HDMI: 8-bit YCC 4:2:2, 8-bit RGB and YCC 4:4:4
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080PsF23.98/24/25/29.97/30
    1080i50/59.94/60 (high-speed: 1080i100/119.88/120)
    720p23.98/24/25/29.97/30/50/59.94/60
    576p50 (high-speed 576p100)
    480p59.94/60 (high-speed 480p119.88/120)

    Data I/O:

    1 x SD card slot for LUTs, captured images, firmware updates

    Power:

    Inputs:
    1 x IEC AC input
    1 x 4-pin XLR
    Outputs:
    1 x 12 VDC LEMO
    3 x USB (0.5 A max output)

    Compliance:

    FCC, IC, CE, RoHS

    Operating Temperature:

    32 to 105°F

    Storage Temperature:

    4 to 120°F

    Dimensions:

    11.5” x 17.5” x 2.5”

    Weight:

    12.1 lbs
