Angenieux PL 24-290 Optimo Ultra 12x T2.8 Zoom Lens

Angenieux PL 24-290 Optimo Ultra 12x T2.8 Zoom Lens

Quantity

The Angenieux PL 24-290 Optimo Ultra 12x T2.8 Zoom Lens is a high-end cinema zoom lens known for its exceptional optical quality and versatility! It features a 12x zoom ratio, offering a focal range from 24mm to 290mm, and maintains a consistent T2.8 aperture throughout the zoom range! The lens is designed to rival the performance of prime lenses at equivalent focal lengths, offering exceptional image quality with minimal breathing, distortion, or chromatic aberration. Additionally, the lens features Angénieux's IRO (Interchangeable Rear Optics) technology, allowing for compatibility with different image circle formats, including Super 35, U35, and Full Frame/VistaVision.

Add-Ons

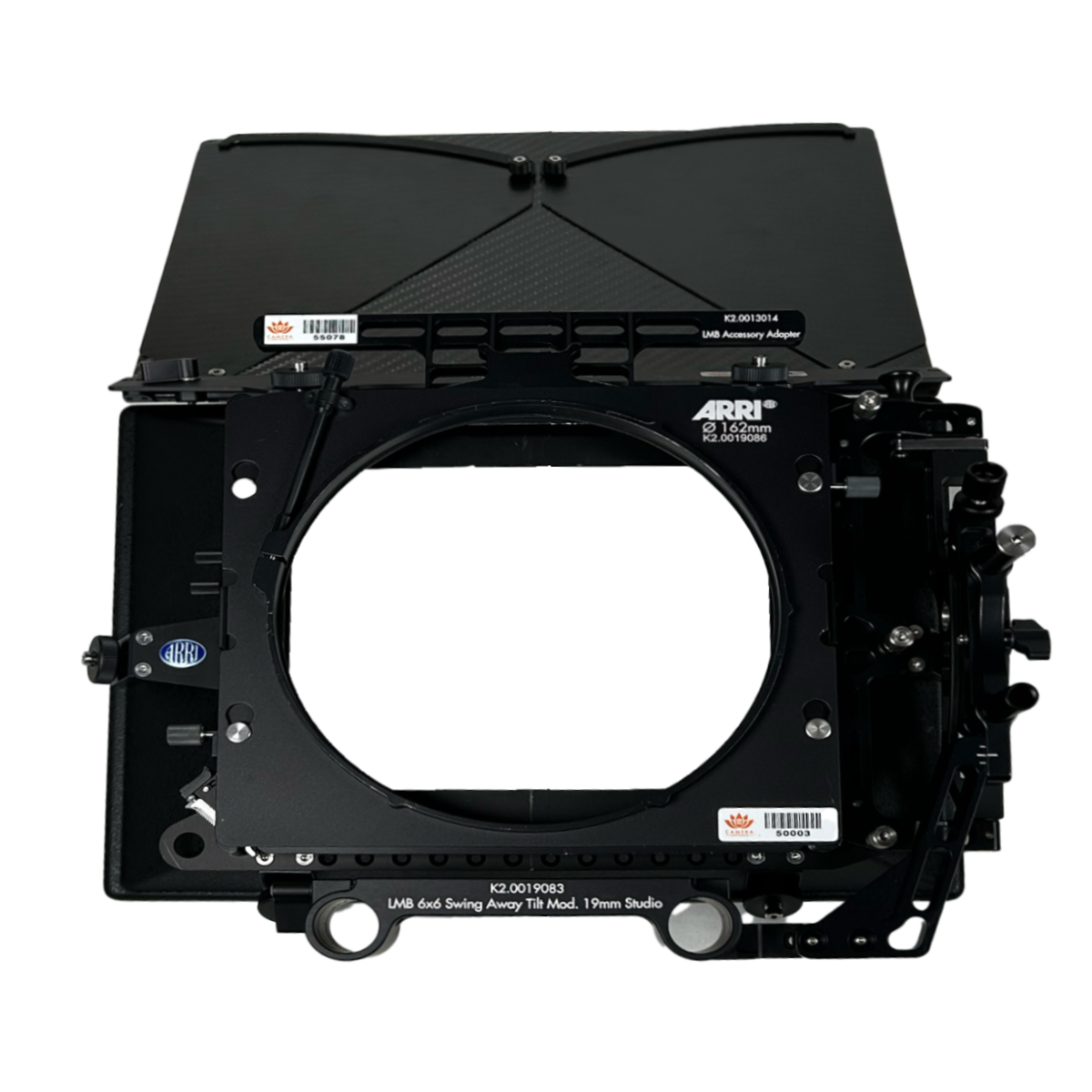

Arri LMB 6x6 Pro Matte Box Kit

Pairs well with

Arri LMB 6x6 Pro Matte Box Kit

$125.00

Out of stock
Century PL 35mm Lens Extender 2X MKII (Doubler)

Pairs well with

Century PL 35mm Lens Extender 2X MKII (Doubler)

$45.00

Out of stock
Arri LPL Enso Prime (6) Lens Set

Pairs well with

Arri LPL Enso Prime (6) Lens Set

$1,250.00

Out of stock
Angenieux PL 24-290 Optimo Ultra 12x T2.8 Zoom Lens

Angenieux PL 24-290 Optimo Ultra 12x T2.8 Zoom Lens

$1,200.00

  • (1) Angenieux PL Optimo Ultra 12x Zoom Lens With Front & Rear Caps

    (1) Super 35, Ultra 35 or Full-Frame Rear Group

    (1) PL Mount

    (2) 24" - 19mm Rod

    (1) 24" - Arri  Standard Dovetail

    (1) Arri Lens Support For 19mm Studio Bridge Plate - LS-9

    (1) 19mm - Forward Rod Support

    (1) 15mm Studio - Forward Rod Support

    (1) Hard Case

  • $1,200.00 Day/Weekend Rate
    $3,600.00 Week Rate

    We offer a price match guarantee—if you find a lower advertised rate for the same equipment from another Chicago rental house, we'll match it, no questions asked.

    For custom rental periods or special requirements, contact our team at rentals@cameraambassador.com to discuss tailored pricing.

  • Zoom Ratio:
    • 12x
    Focal Length:
    • 24-290mm (Super 35)
    • 26-320mm (Ultra 35)
    • 36-435mm (Full Frame)
    Maximum Aperture:
    • T2.8 (Super 35)
    • T3.1 (Ultra 35)
    • T4.2 (Full Frame)
    Minimum Object Distance:
    • 4'  (Super 35)
    • 4.01' (Ultra 35)
    • 5' (Full Frame)
    Coverage:
    • 1.2" (Super 35)
    • 1.36" (Ultra 35)
    • 1.8"  (Full Frame)
    Front Diameter:
    • 6.38"
    Maximum Diameter:
    • 6.7"
    Mounting:
    • PL
    • LPL Compatible
    Internal Focus (IF):
    • Yes
    Lens Iris:
    • 2 x Opposite Iris Scales
    • 90° Angular Rotation of Iris Ring
    • 132 Teeth, Pitch 32 Gear Drive
    Zoom:
    • 2 x Opposite Zoom Scales
    • 170° Angular Rotation of Zoom Ring
    • 183 Teeth, Pitch 32 Gear Drive
    Focus:
    • 2 x Opposite Focus Scales
    • 320° Angular Rotation of Focus Ring
    • 208 Teeth, Pitch 32 Gear Drive
    Angular Field of View:

    For 22 x 16 mm Film:

    • 48.2 x 4.4° (Super 35)
    • 43.7 x 4.0° (Ultra 35)
    • 32.7 x 2.9° (Full Frame)

    For 24.9 x 18.67 mm Film:

    • 54 x 5.0° (Super 35)
    • 49.1 x 4.5° (Ultra 35)
    • 36.9 x 3.3° (Full Frame)
    Length (Lens Mount to Front):
    • 18.6" (Super 35)
    • 18.9" (Ultra 35)
    • 20.6" (Full Frame)
    Weight:
    • 27.7 lbs (Super 35)
    • 28.1 lbs (Ultra 35)
    • 28.1 lbs (Full Frame)

  • Angénieux Optimo Ultra 12X
