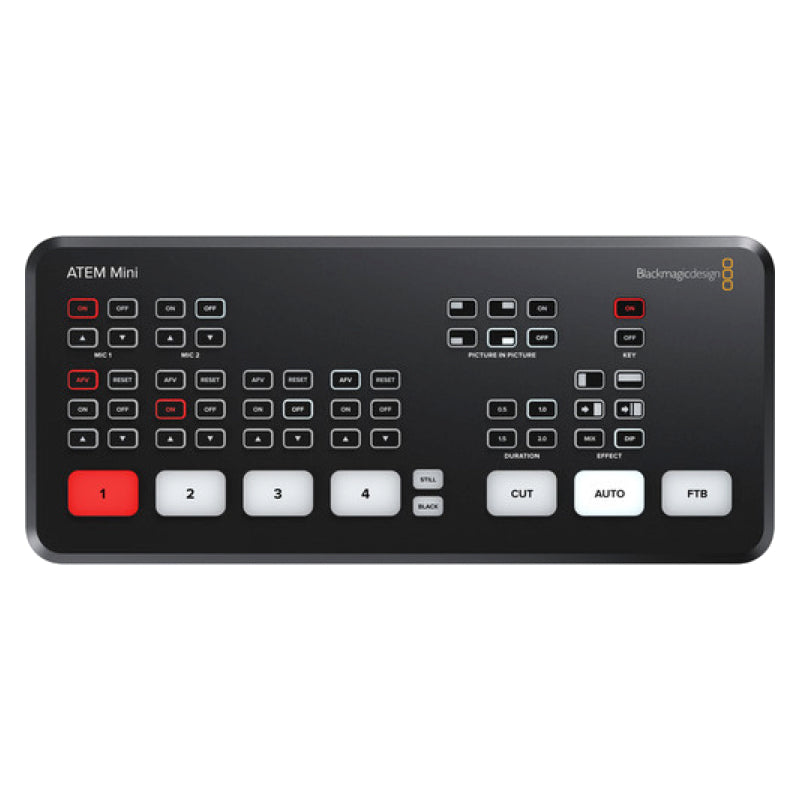

Designed for multicamera live streaming to the internet or broadcast applications, the Blackmagic Design ATEM Mini HDMI Live Stream Switcher Kit provides gaming consoles, corporate computer streams, or HD cameras with a four-input live production switcher with an integrated control panel!

[#tab_1]

(1) Blackmagic Design ATEM Mini HDMI Live Stream Switcher

(1) AC Power Supply

[/tab_1]
[#tab_2]

$45.00 Day/Weekend Rate
$135.00 Week Rate
$405.00 Month Rate

[/tab_2]

[#tab_3]

Inputs:

4 x HDMI Type A
2 x 3.5 mm Stereo Analog Audio
1 x RJ45 Ethernet

Outputs:

1 x HDMI
1 x USB Type-C (Computer/Webcam)

Video Input Formats:

HDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

Video Output Formats:

1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98

Video Sampling:

4:2:2 YUV

Color Precision:

10-Bit

Color Space:

Rec. 709

Color Space Conversion:

Hardware-Based, Real Time

Embedded Audio:

2-Channel Input and Output

Audio Mixer:

6-Input, 2-Channel

Media Player:

1 x Player with Fill and Key

Still Image Capacity:

20

Image Format Support:

PNG, TGA, BMP, GIF, JPEG, TIFF

Keyers:

1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)

Layers:

Up to 4

Generators:

1 x Pattern
2 x Color

DVE:

1 x Border and Drop Shadow

Monitor Resolution:

1366 x 768 or Greater

Number of Windows:

10

Compatible Operating Systems:

Apple macOS 10.13, 10.14, or Later
Windows 10

Power Input:

1 x Barrel

Voltage:

12 V

Power Draw:

18 W

Operating Temperature:

41 to 104°F

Storage Temperature:

14 to 140°F

Relative Humidity:

0 to 90% Non-Condensing

Dimensions:

9.4” x 4.1” x 1.4"

Weight:

19.4 oz

[/tab_3]

[#tab_4]

4-Channel Live Stream HDMI Switcher
Input/Output up to 1080p60 10-Bit 4:2:2
2-Channel Digital Audio Mixer
HDMI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers
DVE Transition, Chroma/Luma Keyers
Color and Pattern Generators
USB Type-C Streaming/Webcam Output

[/tab_4]

[#tab_5]

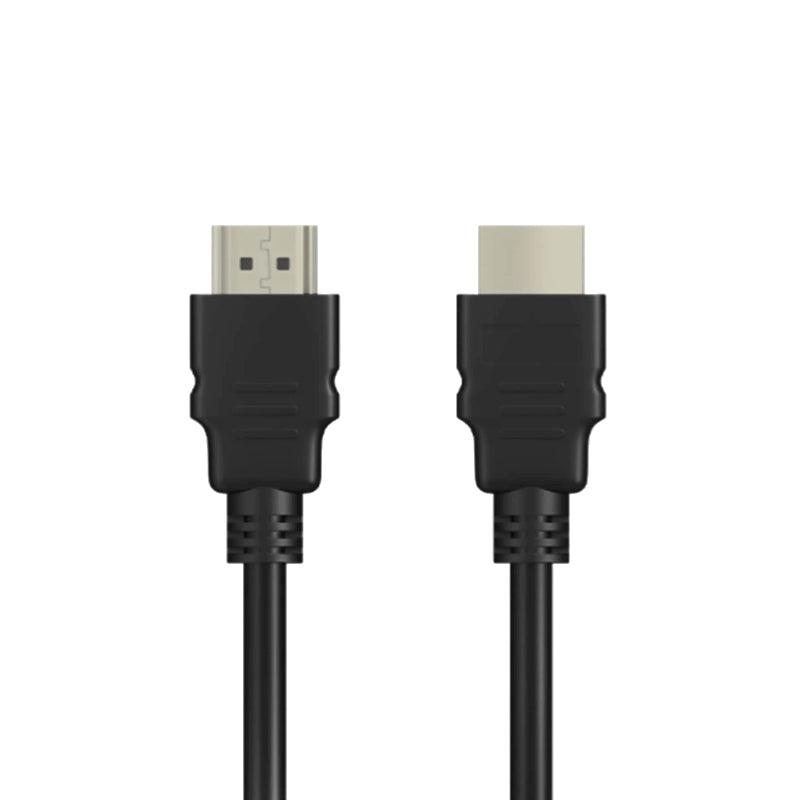

30' - HDMI Cable

Hollyland (6) Pro-6S Single Ear Wireless Headset Kit

[/tab_5]

Monitoring

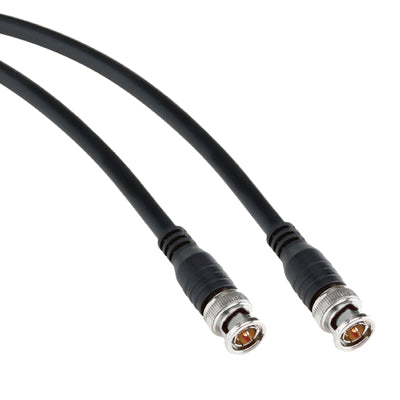

50' SDI Video Cable - BNC To BNC

25' SDI Video Cable - BNC To BNC

Blackmagic Design ATEM Mini HDMI Live Stream Switcher Kit

30' - HDMI Cable

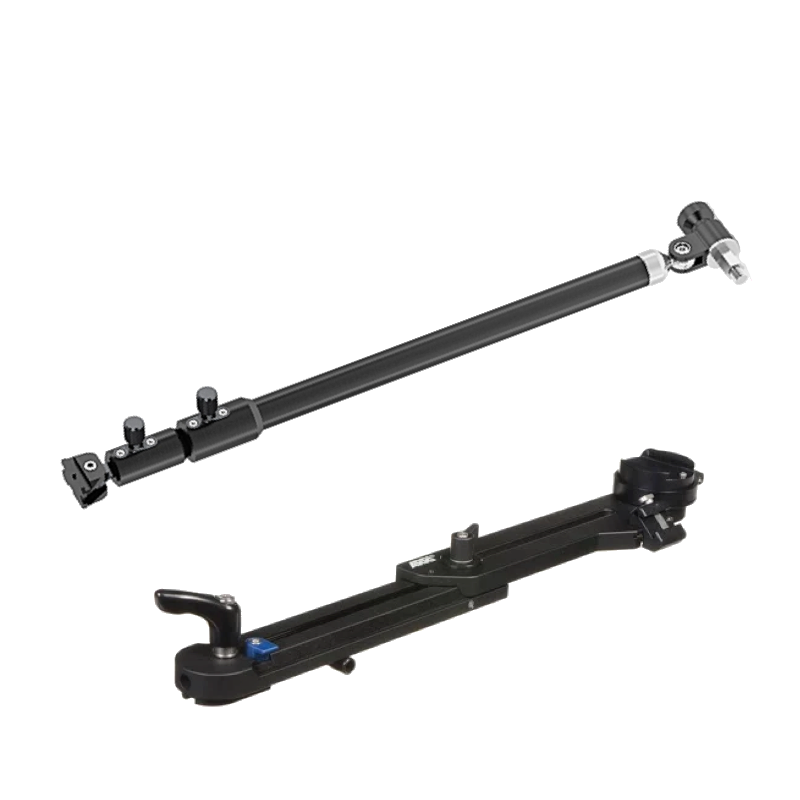

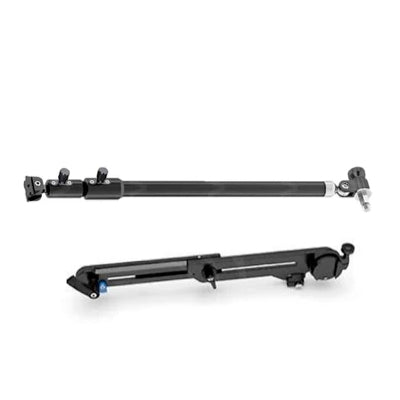

Arri VEB-3 Viewfinder Extension Bracket With Arri EL-3 Eyepiece Leveler

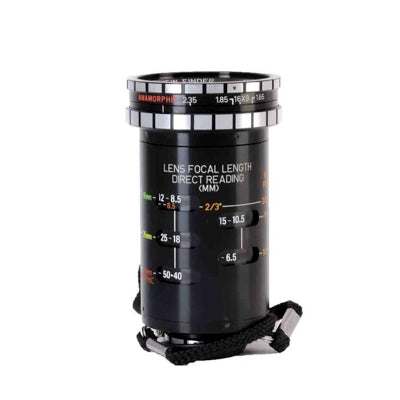

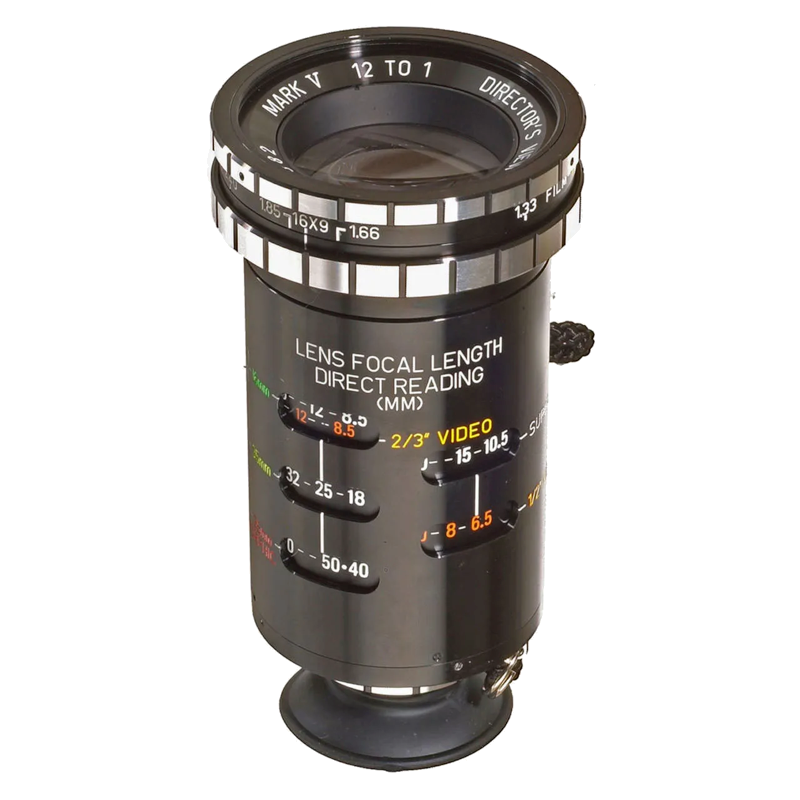

Alan Gordon MK V Directors Finder
